Advantages and disadvantages of rotary filling machines and linear filling machines
The core difference between rotary and linear filling machines can be simply understood as the difference between a high-efficiency circular production line and a segmented linear operation. One pursues ultimate speed and compactness, while the other emphasizes flexibility and stability.
I have compiled their advantages and disadvantages in key dimensions into the table below for your quick evaluation:
| Comparison Dimensions | Rotary Filling Machine | Linear Filling Machine |
| Production Efficiency | Significant Advantages: Multi-station operation simultaneously, suitable for large-volume continuous production; high-speed lines with an hourly output of tens of thousands of bottles are primarily rotary table systems. | Relative Disadvantages: Intermittent motion, typically slower than rotary table systems, more suitable for medium- to low-speed production. |
| Filling Accuracy | High accuracy. Often equipped with electronic scales or flow meters, high-precision models can achieve an error of ±0.05%. For easily foaming materials, high-end rotary machines can also achieve precise follow-up filling. | Good accuracy. Volumetric piston or time-pressure control can meet most requirements, but stability is slightly inferior for high-speed filling or certain materials. |
| Site and Layout | Space-saving. The more filling heads a vertical rotary layout has, the more space-saving the advantage becomes. | Large footprint. With filling heads arranged in a row, the more heads there are, the longer the production line becomes. |
Changeover Flexibility | Adjustments are relatively complex. Suitable for orders with few product varieties but large volume. Changing specifications on some models requires replacing mechanical parts such as cams. | gh Flexibility: Adjusting bottle type and capacity usually does not require changing parts; simple adjustments are sufficient. |
Equipment Investment | High cost. Complex structure, high technical threshold, initial purchase price significantly higher than linear type. | Lower cost. Relatively simple structure, high cost-effectiveness, the first choice for small and medium-sized enterprises to start with. |
Maintenance and Operation | High requirements. Requires skilled technicians for debugging and maintenance; easily worn parts such as the turntable mechanism and cams need regular replacement. | mple and Convenient.
Intuitive structure; ordinary workers can operate and maintain it after training. |
Product/Container Adaptability | Wide range. While requiring bottle shape stability at high speeds, it can handle various sizes. | very wide range. Adaptable to bottles ranging from a few milliliters to large 20-liter containers; suitable for both hard bottles and soft bags. |
Rotary type: Prefer if you have large order volumes, a limited product range, and limited space, requiring extreme speed and high automation (e.g., beverages, beer, large-scale consumer goods). Its high output can reduce the cost per bottle.

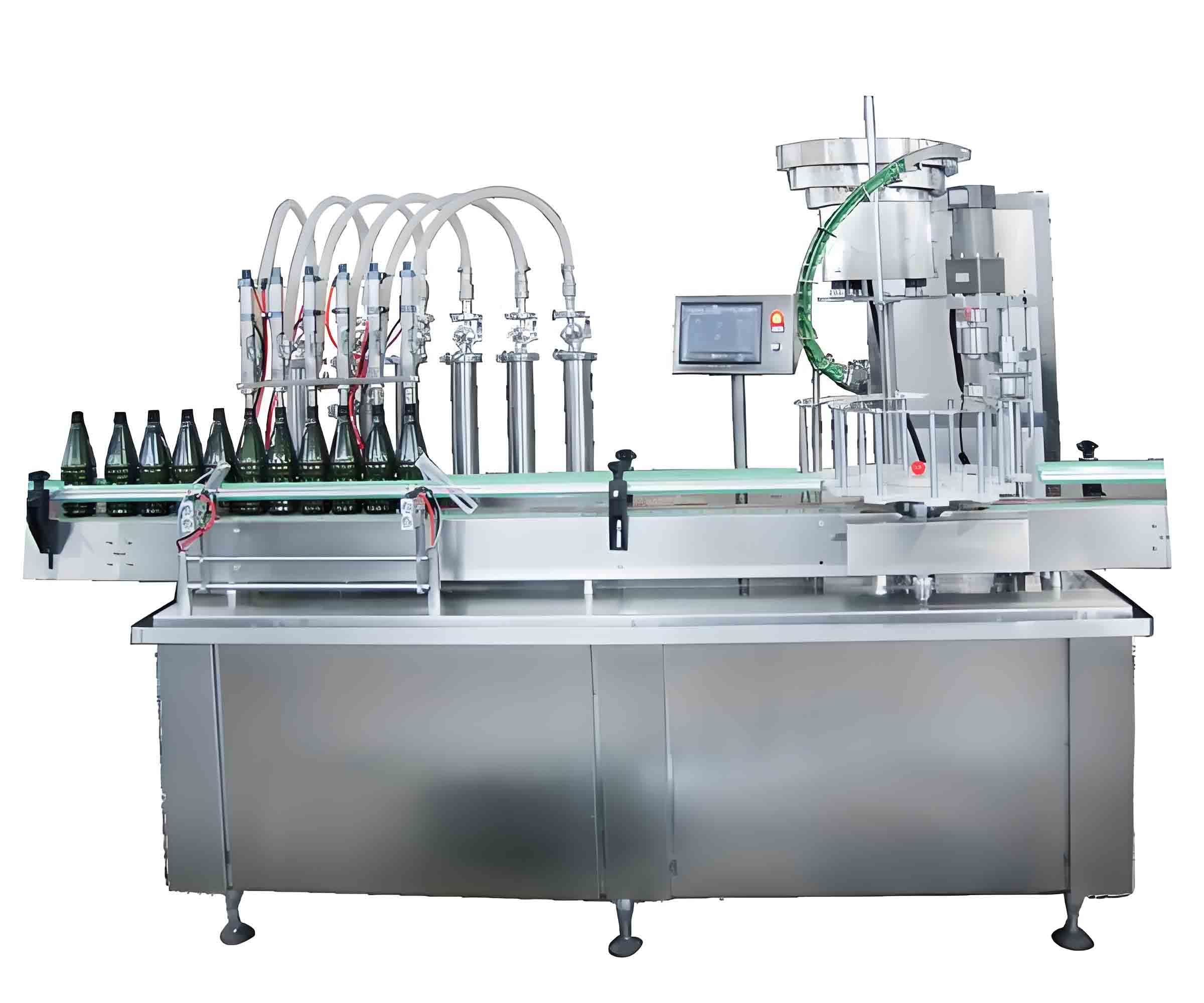

Linear type: Prefer if you are a small or medium-sized enterprise with variable product specifications, frequent production changes (e.g., condiments, lubricants, pharmaceutical reagents), or a limited purchasing budget. Its flexibility and low maintenance costs are key advantages.
